Setting up an F5 Load Balancer v12

arrow-of-double-point-pointing-different-directions_318-50733

Instructions

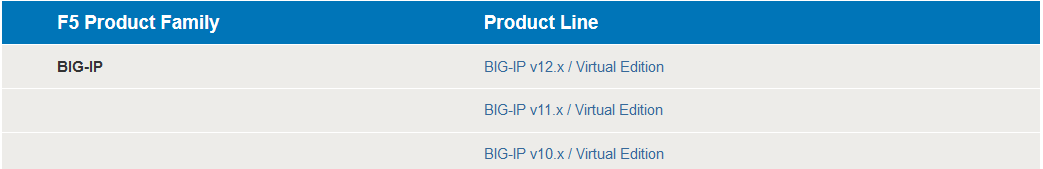

  • On the F5 website, click trial license and download your software and request a license to be emailed to you (F5 BIG-VE-LAB-LIC)

https://f5.com/products/trials/product-trials

F5a

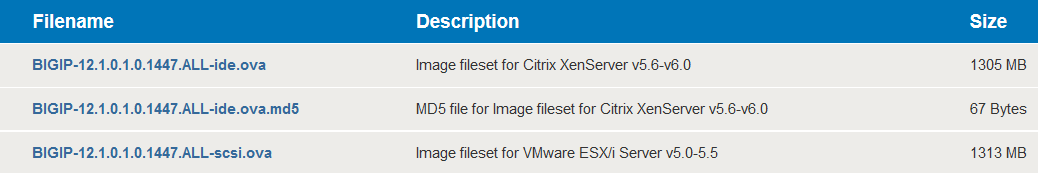

  • Download the installer (ESXi Server)

F5b

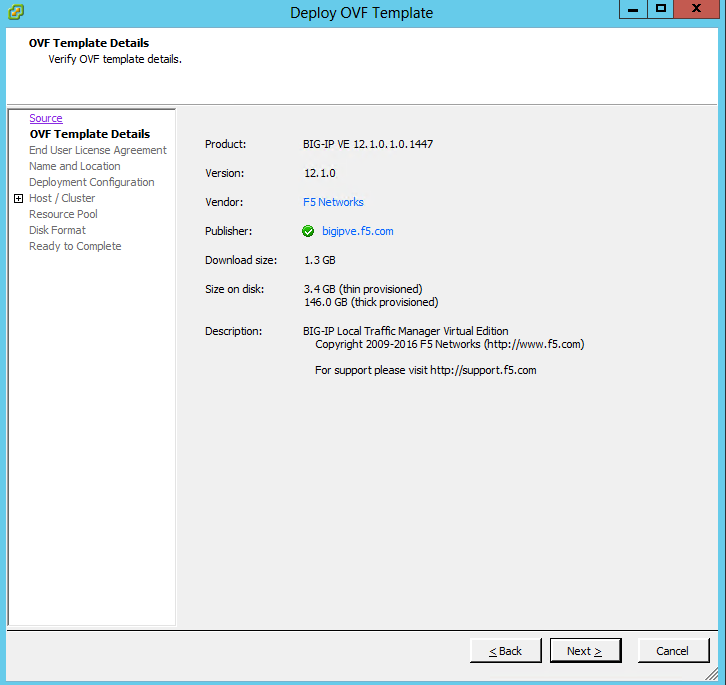

  • Open vCenter and select File > Deploy OVF Template

F5c

  • Accept License agreement

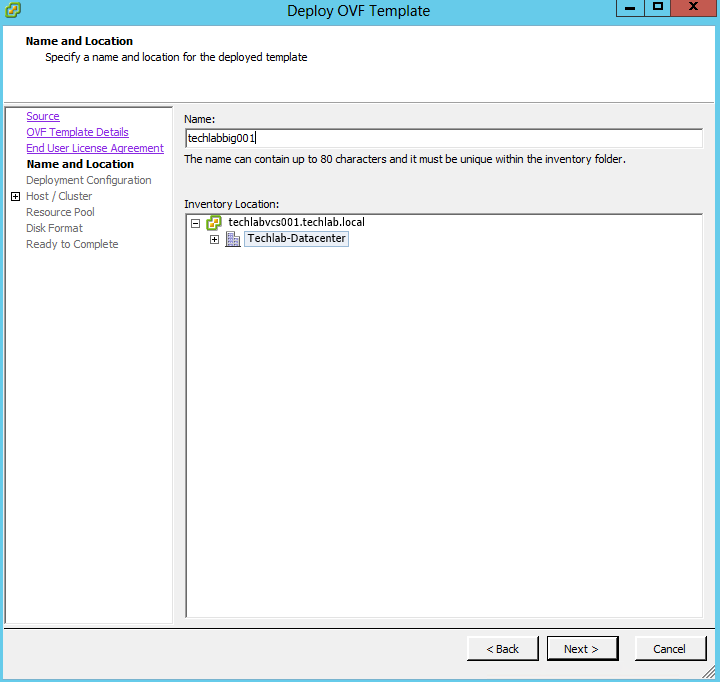

  • Put in a name

F5dPNG

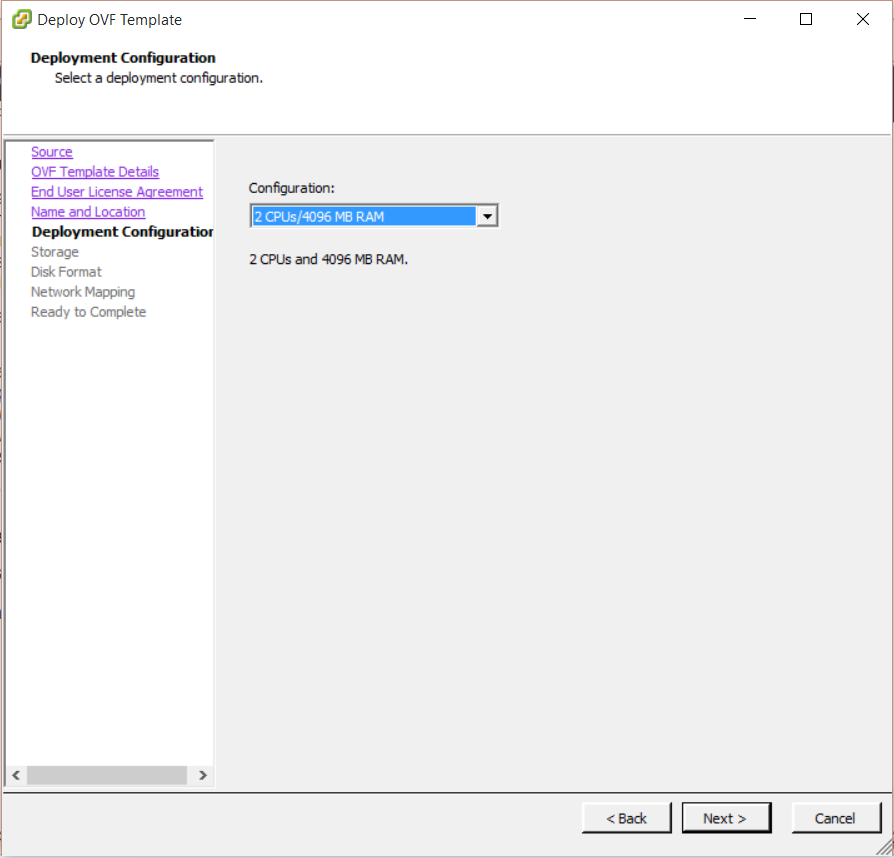

  • Check the resources

f55PNG

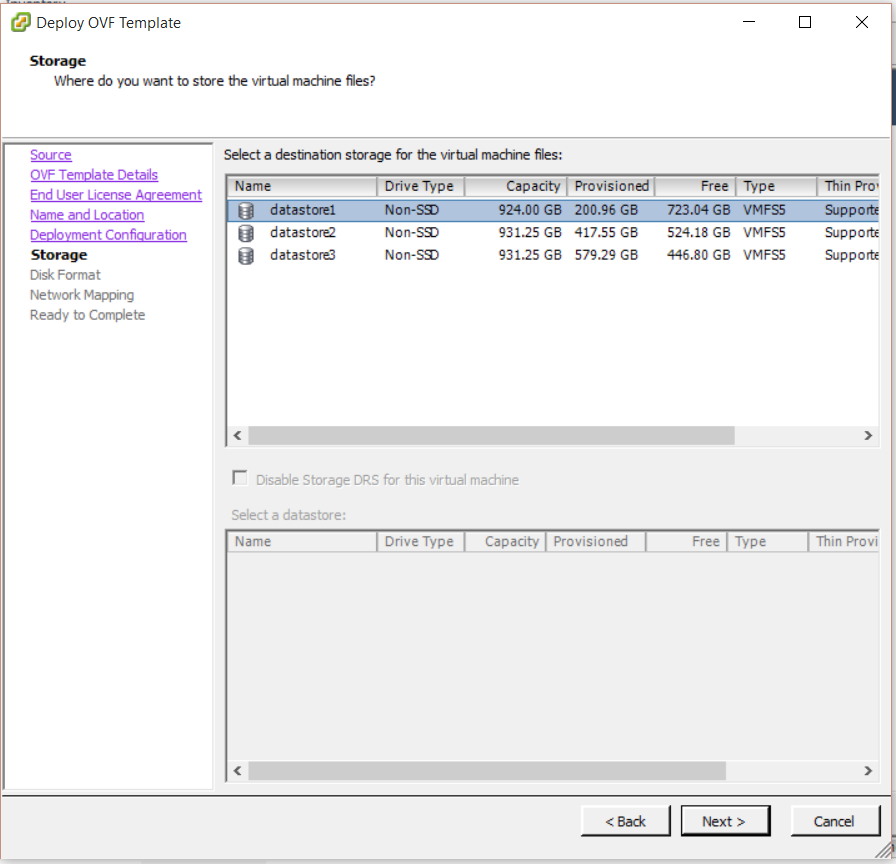

  • Choose the storage

f56PNG

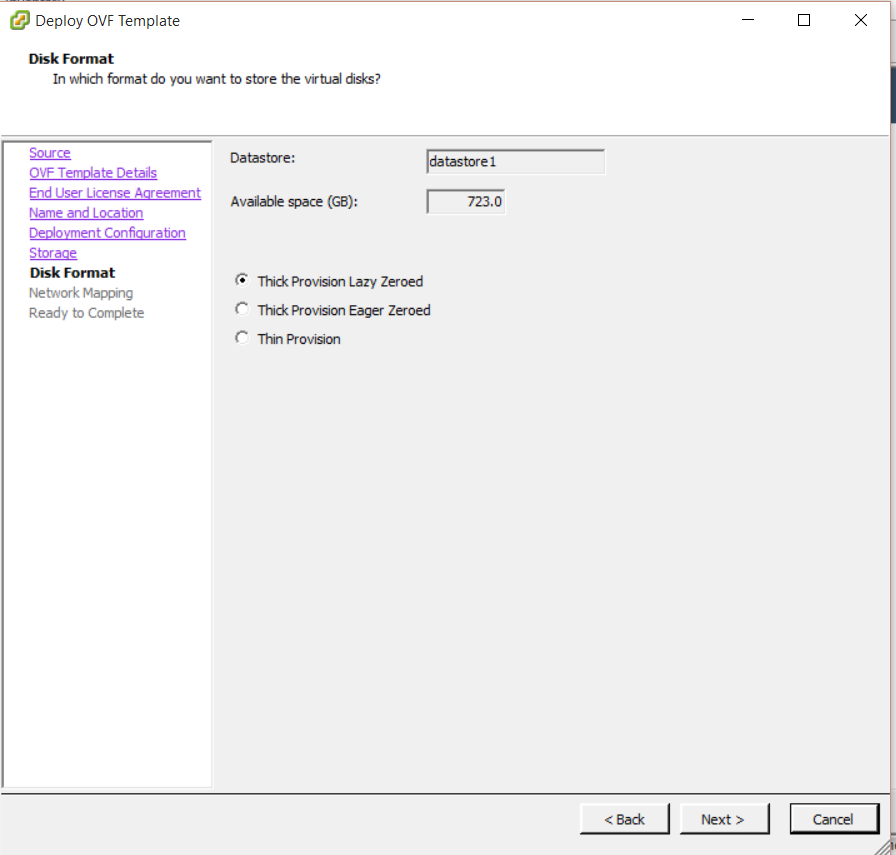

  • Choose disk formatting options

f57PNG

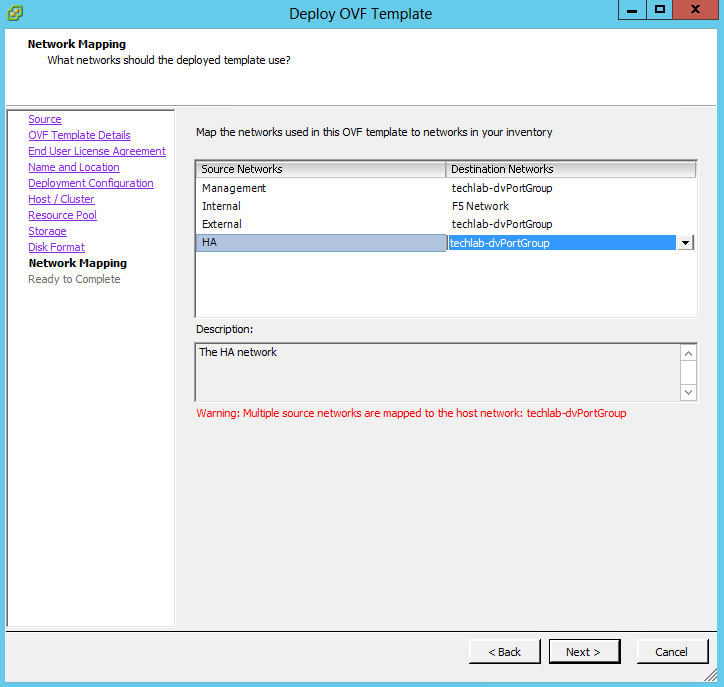

  • Check network mappings
  • Management and Internal need to be on different networks so my machines will sit on the F5 network. I’m not worried about the oher 2 networks for now as I will use the management and the Internal only

F5e

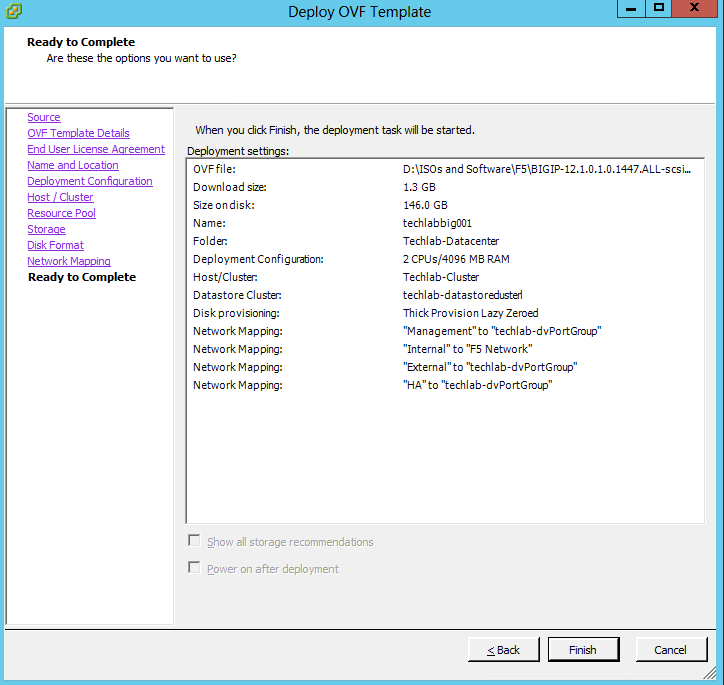

  • Check details
  • Click Finish

F5f

  • Power on the appliance
  • Put in root as the username and default as the password

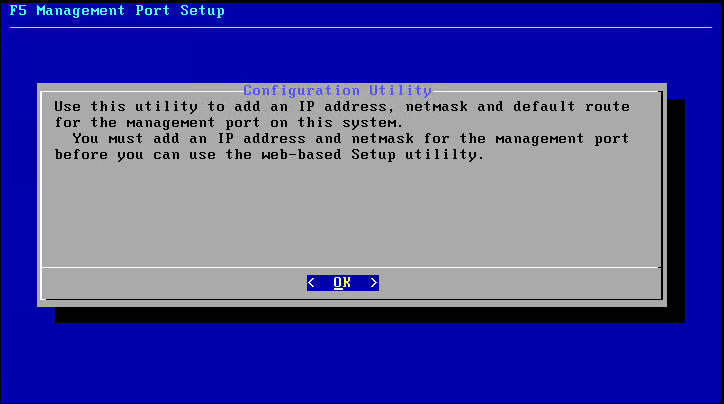

  • Type config and the following screen will open

vRAD133

  • Say No to automatically configured address
  • Put in your IP address, Subnet Mask and Gateway
  • You should now be able to log into the interface on https://youripaddress

vRAD134

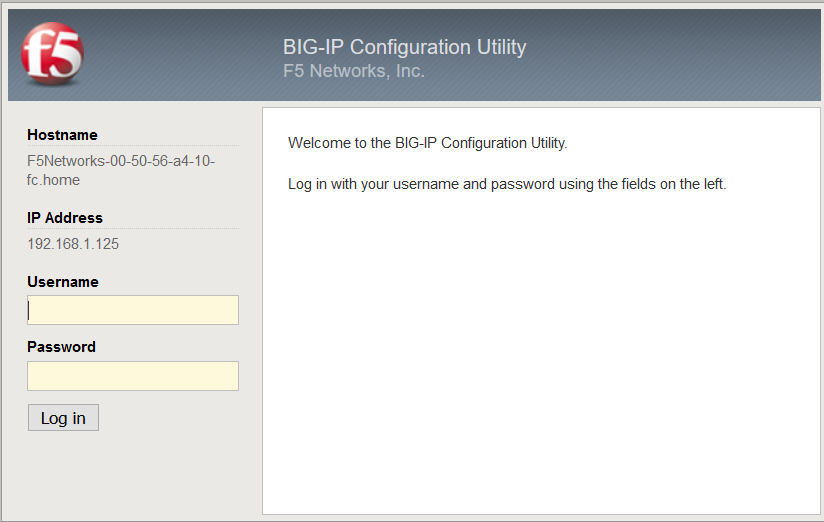

  • The username is admin and the password is admin

vRAD135

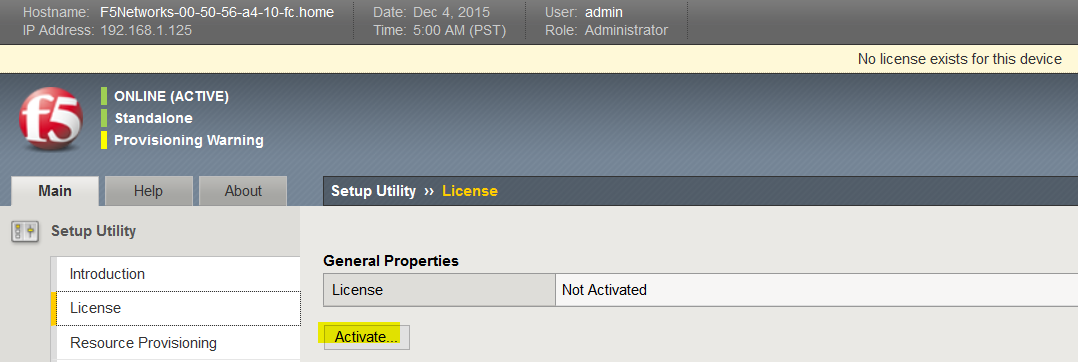

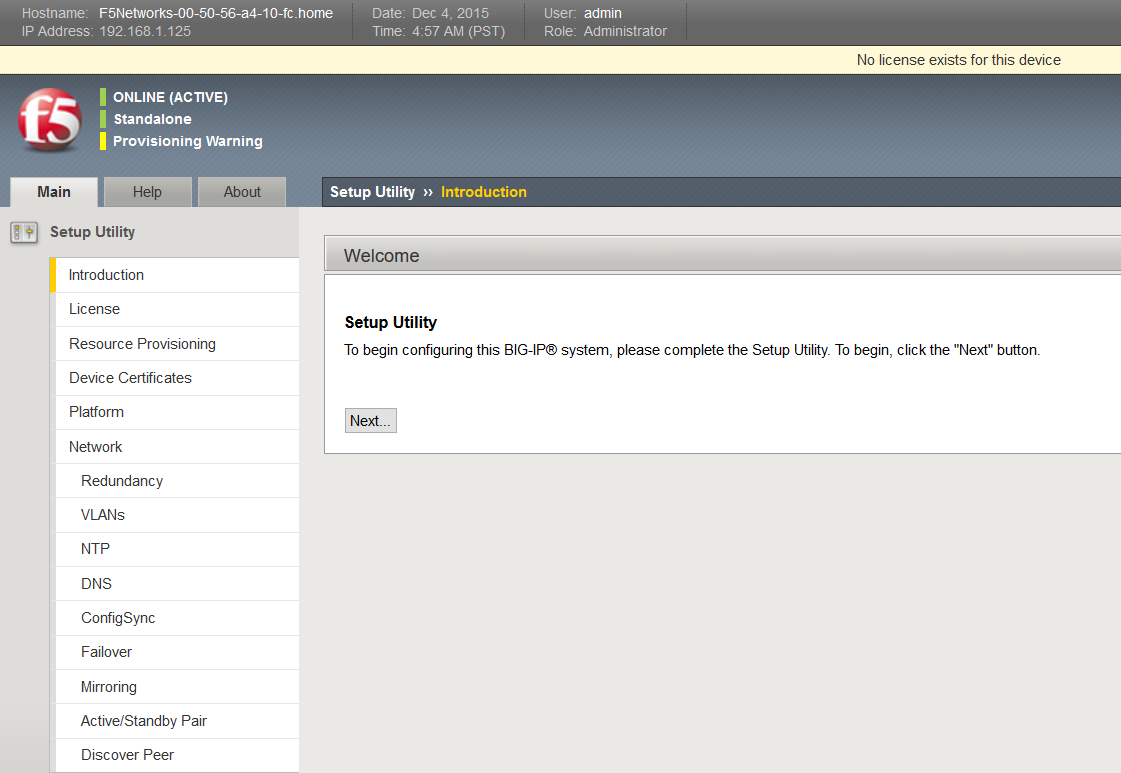

  • You will need to activate the license which will have been emailed to you

vRAD136

  • Accept the license agreement

vRAD137

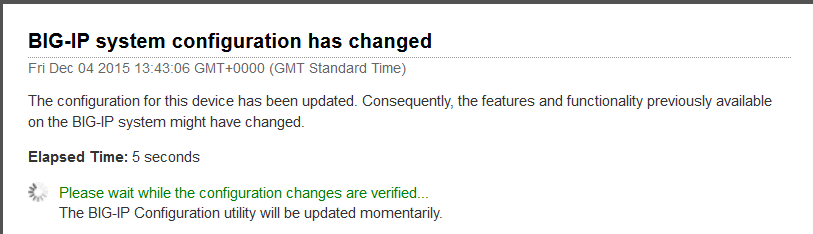

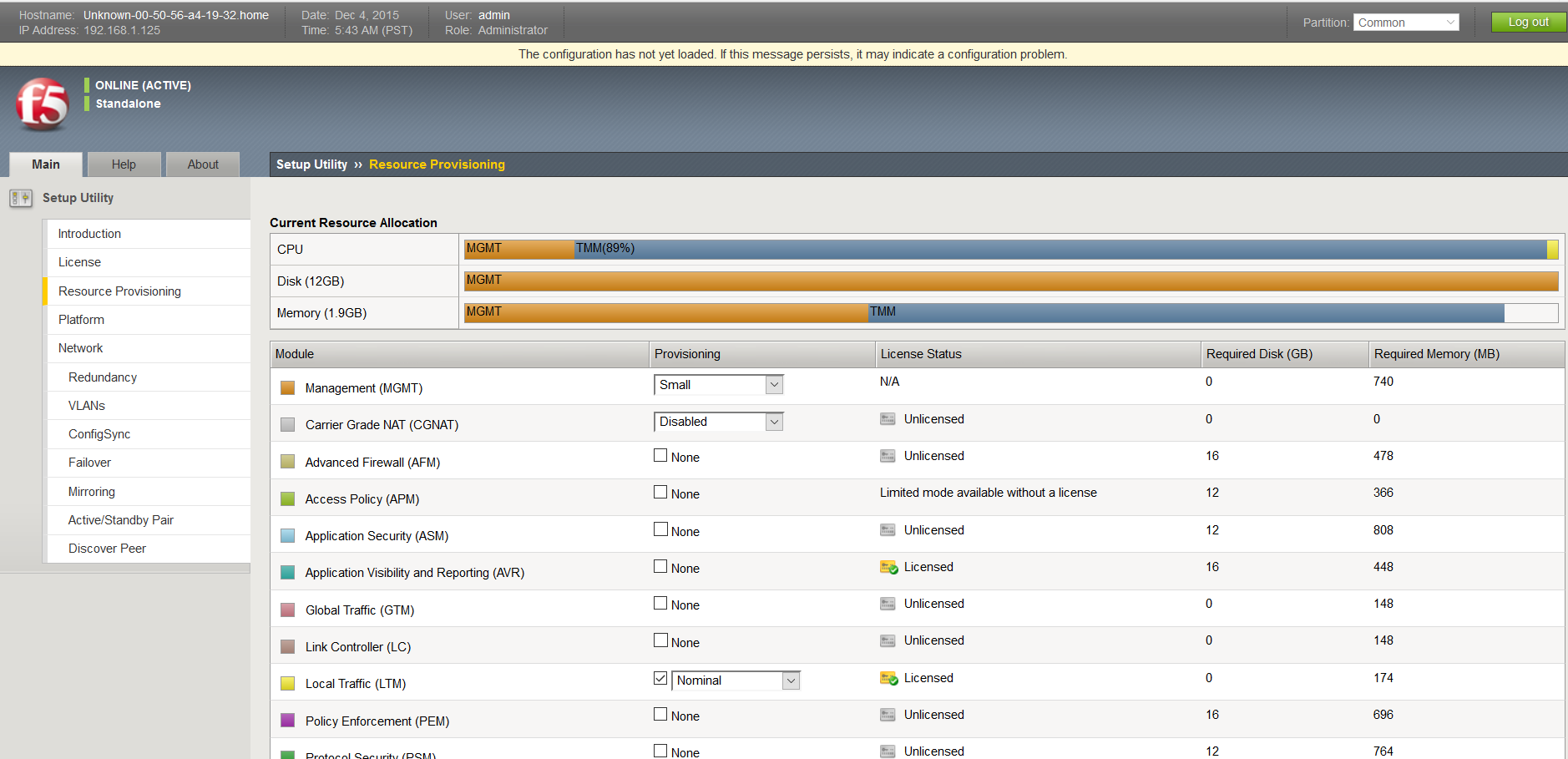

  • You should now see the below screen which shows you current resource reservations, License status and disk provisioning figures

vRAD138

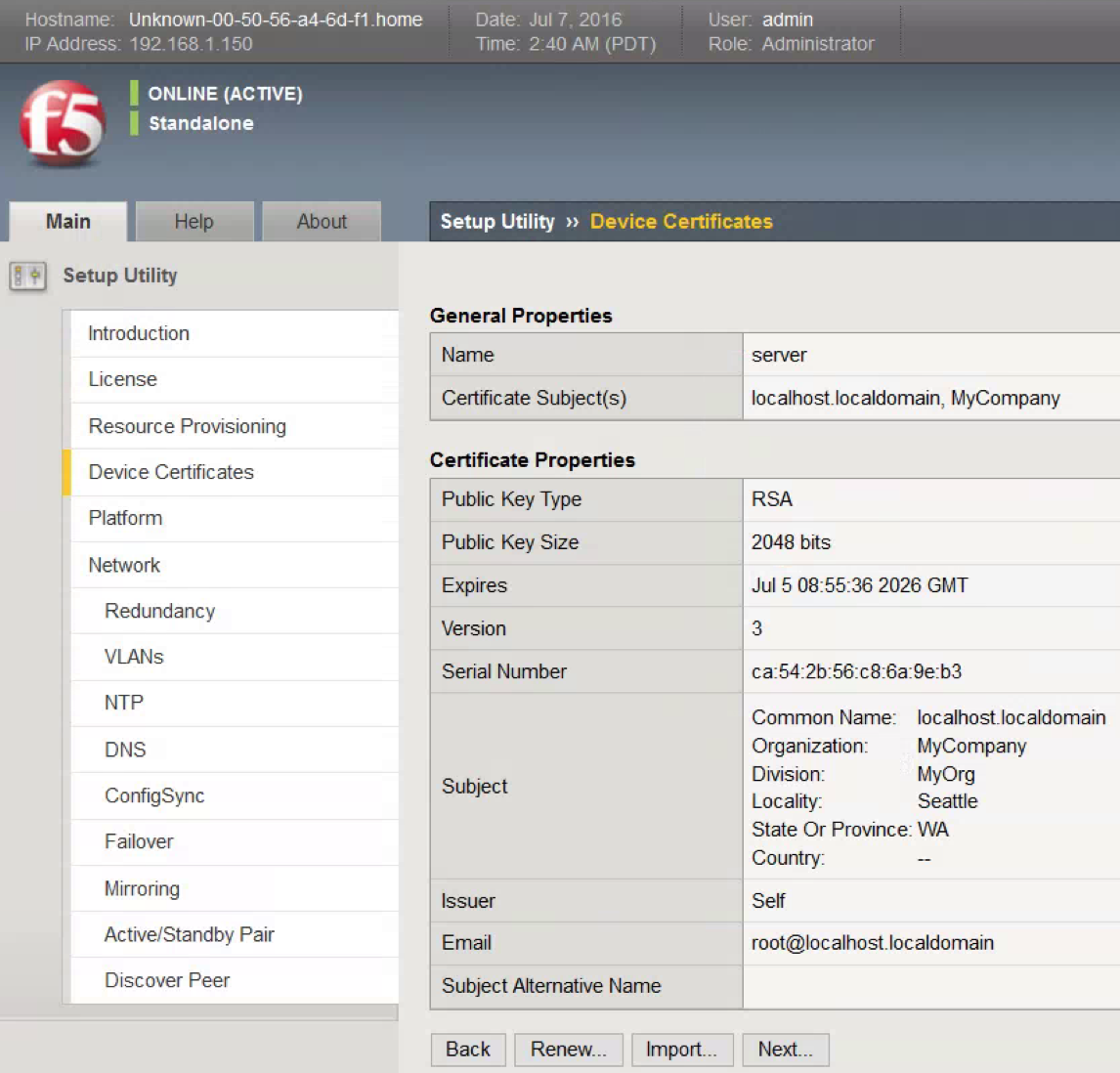

  • Click Next and you will now see your device certificates screen

Screen Shot 2016-07-07 at 10.45.49

  • You will now be on the General properties screen

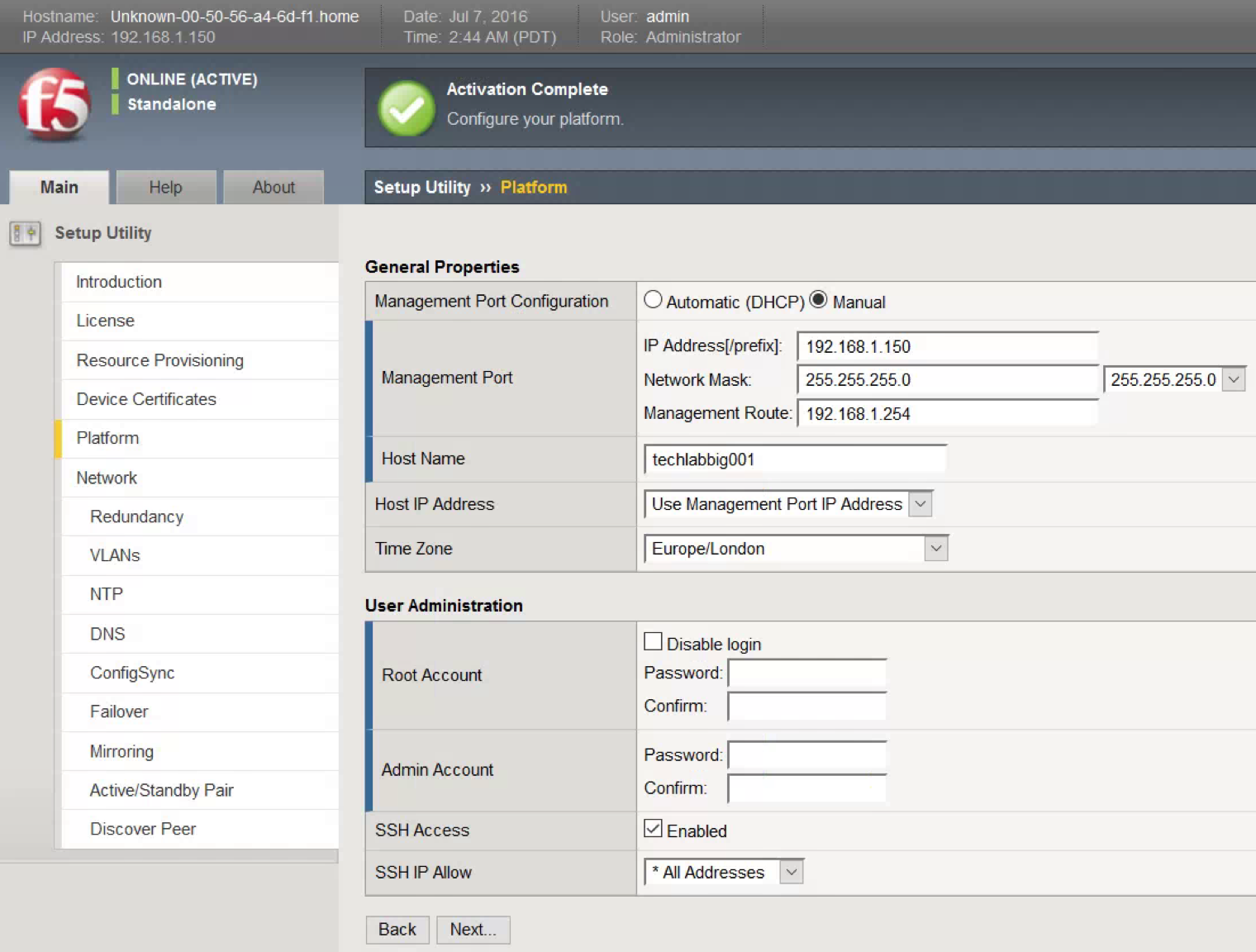

  • Add in your Hostname in FQDN format, Timezone and change the Root and Admin account password and any other details which require changing

Screen Shot 2016-07-07 at 10.49.55

  • It will ask you to Log out and in again
  • When you log back in you will be presented with a network screen
  • Click Next

F5g

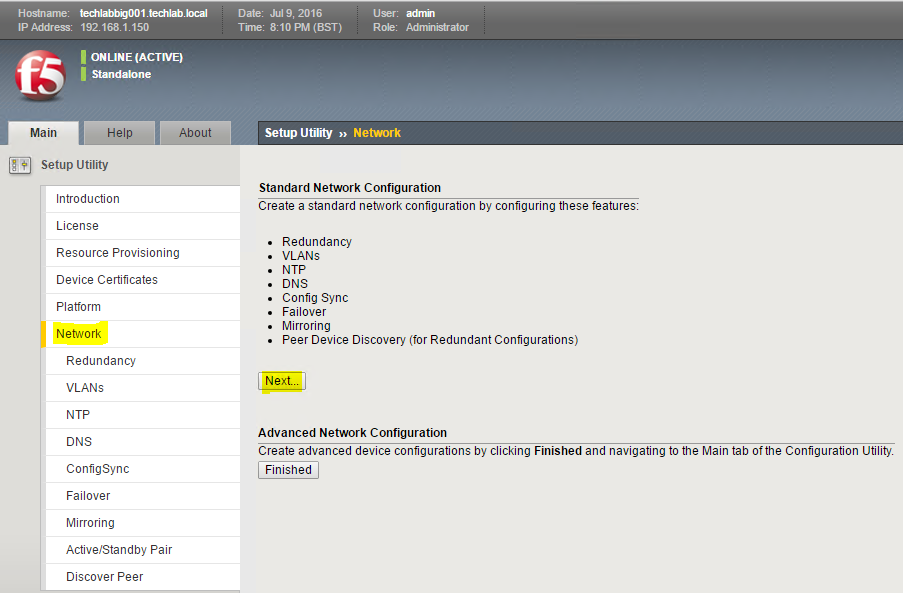

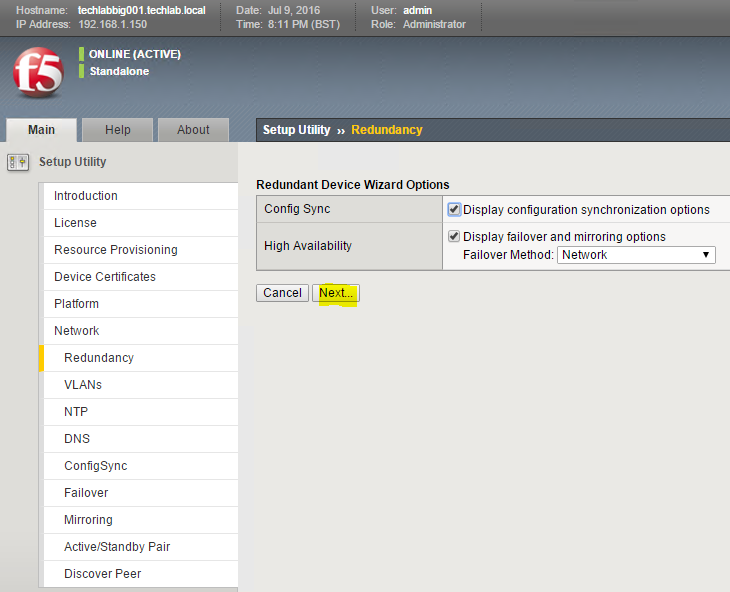

  • Click Next on the page below

F5h

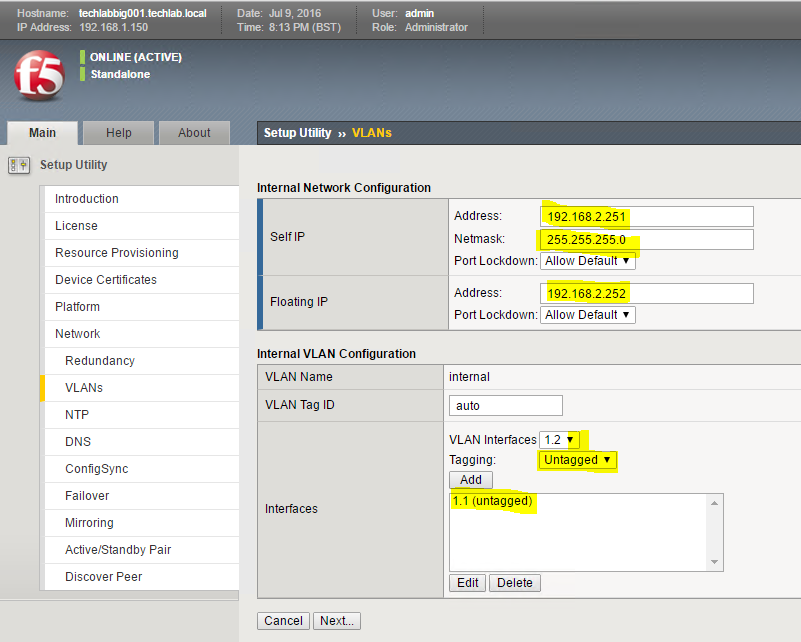

  • On the VLANs page put in a self IP, and subnet mask this needs to be an address on your internal network, in my case the F5 network
  • Put in a floating IP address on the same network
  • In Internal VAN configuration, select the 1.0 VLAN interface and select untagged and click Add

F5i

  • Interface 1.0 is the Management interface that was initialized during the deployment of the OVA and configured earlier in this document.
  • As mentioned earlier for the purpose of this document we will be utilizing only the Internal (Interface 1.1) Interface for load balancing
  • The Internal Interface or Interface 1.1 corresponds to Network Adapter 2 of our F5 appliance

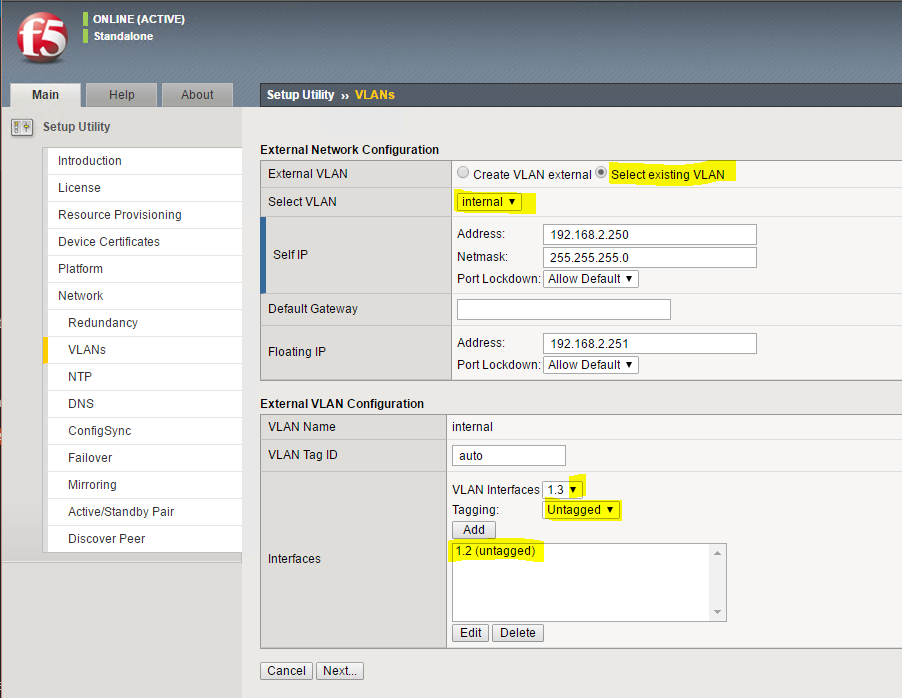

  • You are now on the External Network Configuration screen
  • In External Network Configuration, Choose Select existing VLAN and select Internal
  • In External VLAN configuration delete anything in interfaces then add 1.2 as untagged

F5k

  • On the High Availability screen do the same as the above and Select existing VLAN as Internal

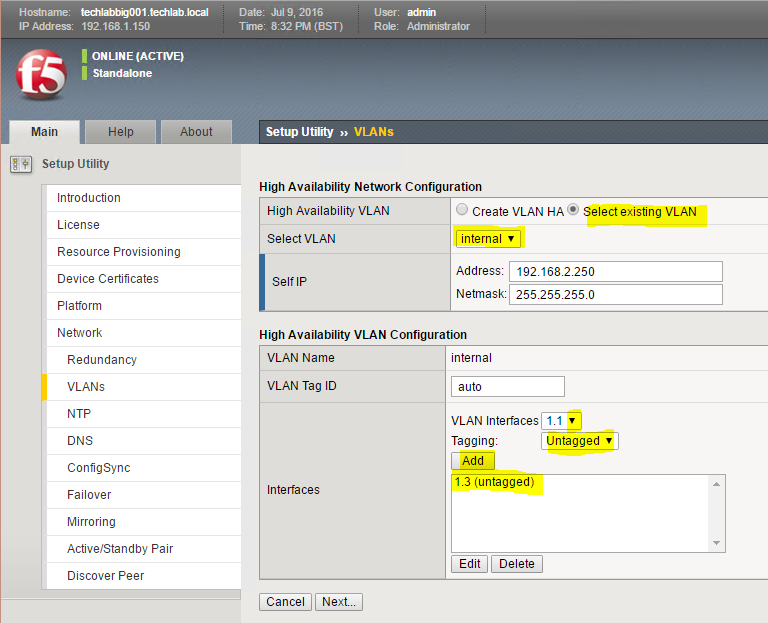

  • On the High Availability VLAN Configuration screen, delete the interface in interfaces and choose 1.3 and untagged and add

F5l

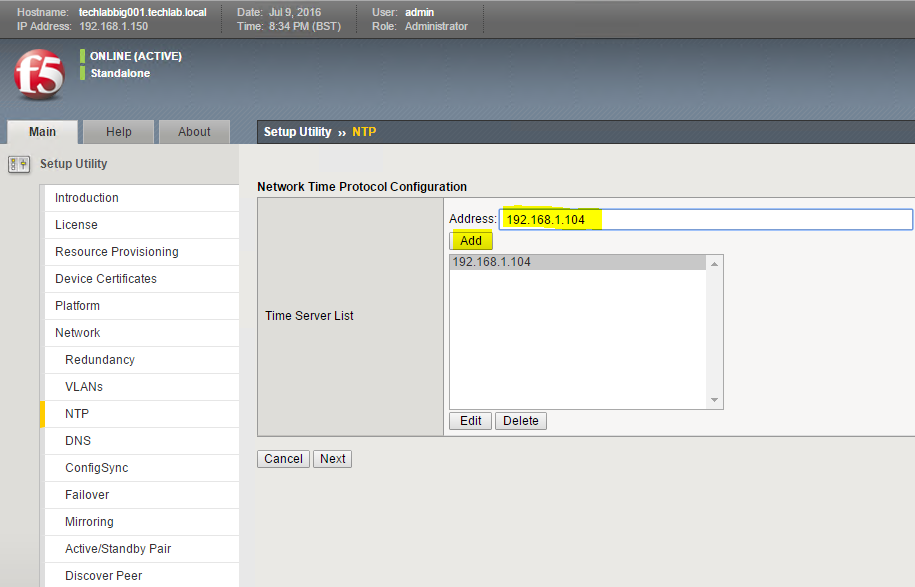

  • Add in the NTP Configuration. I just pointed to my domain controller.

F5m

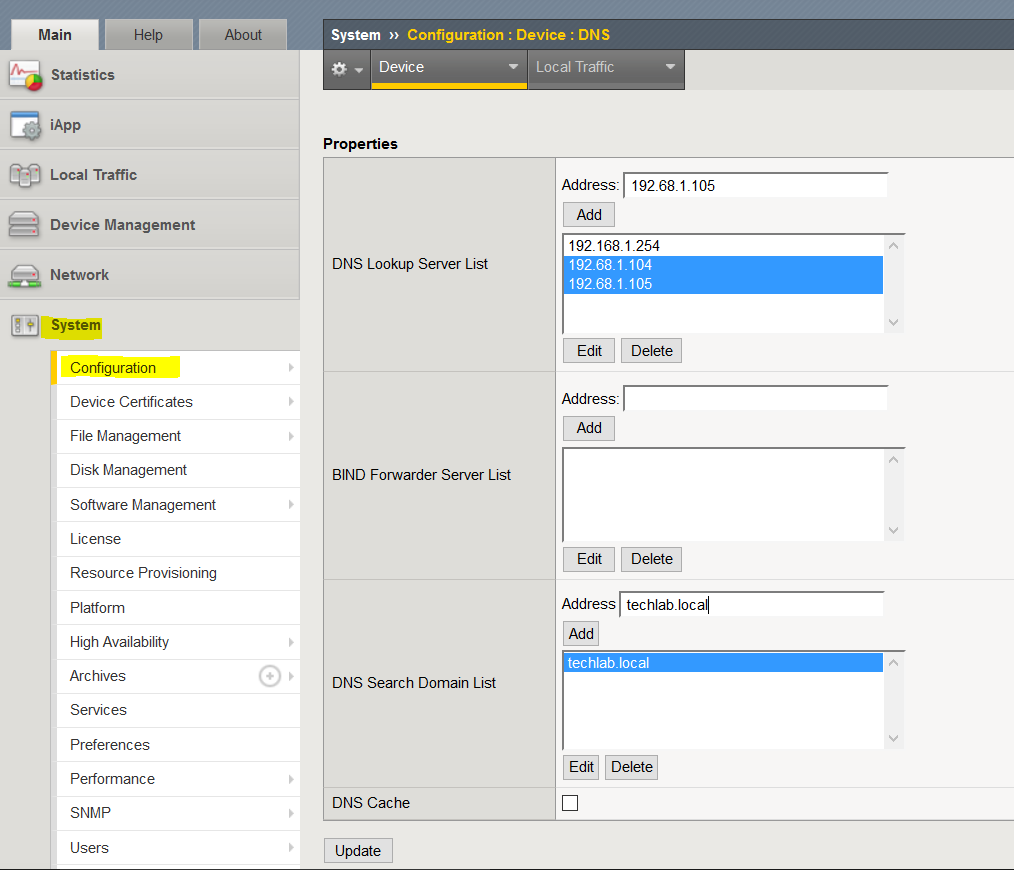

  • Make sure the correct DNS Lookup Servers and DNS search Domain have been added.

vRAD143

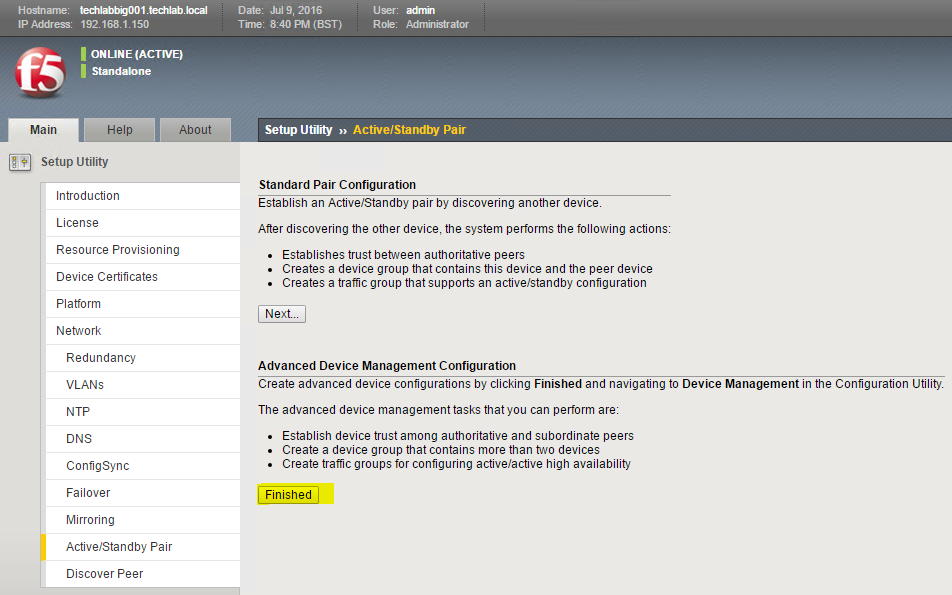

  • Click Next, Next, Next until you get to the Finished screen

F5o

  • You will now be on the default F5 page and ready to set up load balancing
