Recovering from failed vSphere 6 and external multisite PSC upgrades

So what happens if you have the following situation within a failed vSphere upgrade with a multi-site system?

The Scenario

The requirement was to upgrade 3 vCenters from 5.1U3 to 6.0U2. The vCenter servers previously had embedded SSO but have been repointed to the external 6.0 U2 PSCs. Note, we had an intermediary stage of repointing to 5.5U3 external SSOs first before we could upgrade the PSCs to 6.0U2. So once the PSCs are in a multisite 6.0U2 configuration, the upgrade of the vCenters can start and this is where we need to take care as the systems are interlinked at this point.

So we now have

  • 3 x vSphere 6.0U2 PSCs set up in a multisite configuration
  • 3 x 5.1 U3 vCenters pointing to a vSphere 6.0U2 PSC
  • 3 x SQL 2008 R2 Databases running the vCenter Databases and the Update Manager Databases. Not seen in the example above

Why did it fail initially?

Never assume anything. We had already upgraded 2 environments without any issue so we overlooked checking the SQL environments which were meant to be a replica but clearly weren’t!

  • DB password had special characters in the password.
  • Needed to give db owner rights on the vCenter DB and the MSDB database prior to upgrading
  • The ODBC Connection was not the right version. We needed SQL Native Client 10 or 11.
  • Additional Database Permissions for VMware (Can be seen in the vSphere 6.0 Documentation Center
  • SQL Server 2008 R2 needed Service Pack 2 installing. (No problem with this)
  • An informational messages regarding the vCenter FQDN
  • An informational message about the ALL_SERVICES accounts. (New in vSphere. Depends if you want to use Local System for all your vCenter Services or use the multiple vSphere accounts for individual services

So how do you recover from one failed vCenter Upgrade in this scenario?

We do need to take into account at what step has it failed and check the logs to verify this. Can it be an issue that can be worked though and fixed forward or do you need to rollback and depending on how far the installer has got before failing, it might open variations in the options for a rollback.  For example, if it fails to authenticate to the database, then it is unlikely it would have made any DB changes. The installer logs will give us this information.

You can retrieve the installation log files manually for examination.

Procedure

1

Navigate to the installation log file locations.

%PROGRAMDATA%\VMware\vCenterServer\logs directory, usually C:\ProgramData\VMware\vCenterServer\logs

%TEMP% directory, usually C:\Users\ username\AppData\Local\Temp

The files in the %TEMP% directory include vminst.log, pkgmgr.log, pkgmgr-comp-msi.log, and vim-vcs-msi.log.

2

Open the installation log files in a text editor for examination.

Steps

  • Make sure you have been through all the pre-requisites prior to starting the upgrade and test in a lab as well. Give yourself the best start at not failing.
  • Snapshot the whole environment (All VCs, All DBs and all All PSCs) Make sure the environment is quiesced or if you want a more consistent image vs crash consistent, shutdown the whole environment and snapshot it cold
If the upgrade of any VC 5.x to 6.0 fails in this environment, you must roll back ALL PSC.  The reason is that the solution user format differs between 5.x and 6.x. During the upgrade of the VC, the VC 5.x solution users will be removed from the PSC and replaced with 6.x solution users early in the VC 6.x upgrade (during vmafd firstboot I believe). If you have a failure and only roll back the VC then you have a VC with 5.x solution users talking to a PSC that no longer is aware of those users. You must roll back ALL PSCs in the SSO Domain as they replicate.
  • If you encounter an unrecoverable upgrade installer error then in the event of rolling back to snapshots, the order will be all PSCs, the vCenter DB and vCenter Server
  • In the event the rollback above fails, all servers should be rolled back again with the order of power on being all PSCs, all vCenter DBs and all vCenter servers

Questions we have been asked

During an upgrade, could we stop/break the multisite replication agreements between PSCs to avoid any replication of issues in the event of an upgrade problem on one vCenter?

There’s no issue with breaking replication agreements generally but it not something that should be done for an upgrade. The vdcrepadmin command line tool does allows the breaking and creating of agreements and it actually protects the customer by not allowing them to delete the only agreement available. This prevents a customer from inadvertently creating an isolated PSC. What you would do is go through and create the new agreements and once they are in place just delete the extra ones. There is nothing special about the replication agreements that are created during PSC deployment. They are the same as ones created with vdcrepadmin.







Using JXplorer to connect to vSphere PSC Servers

Using JXplorer to connect to vSphere PSC Server

JXplorer is a cross platform LDAP browser and editor. It is a standards compliant general purpose LDAP client that can be used to search, read and edit any standard LDAP directory, or any directory service with an LDAP or DSML interface.

Note: Please take extreme care when connecting to the vmdird database. This is not a recommended way of viewing this data but it can be very useful

JXplorer Download Location

I installed this on a Windows 10 workstation which had connectivity to my PSC Servers

http://jxplorer.org/

Configuration Steps

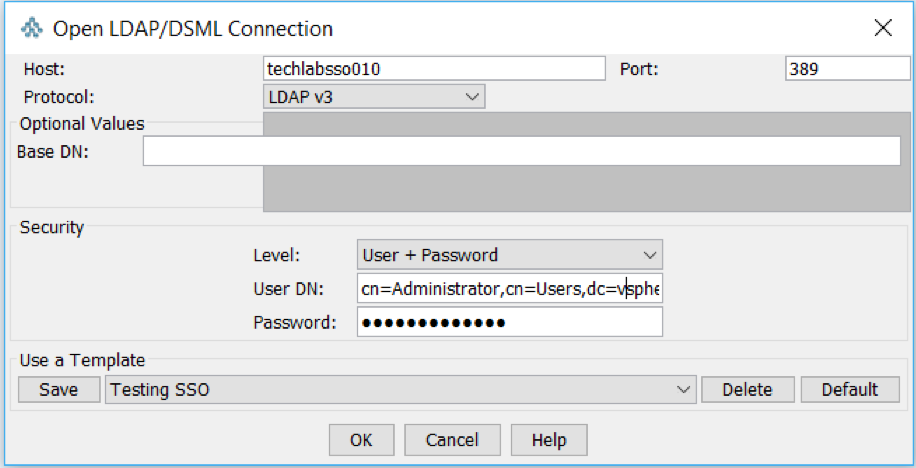

  • Open JXplorer and open a new Connection
  • In the Host field put in the same of your PSC/SSO Server
  • Don’t put anything in Base DN. It will let you connect if you do put a Base DN in but will error when you try and expand the tree
  • In Security Level, choose User + Password
  • In User DN, type CN=Administrator,CN=Users,DC=vsphere,DC=local
  • Put in your PSC/SSO password
  • Save the template

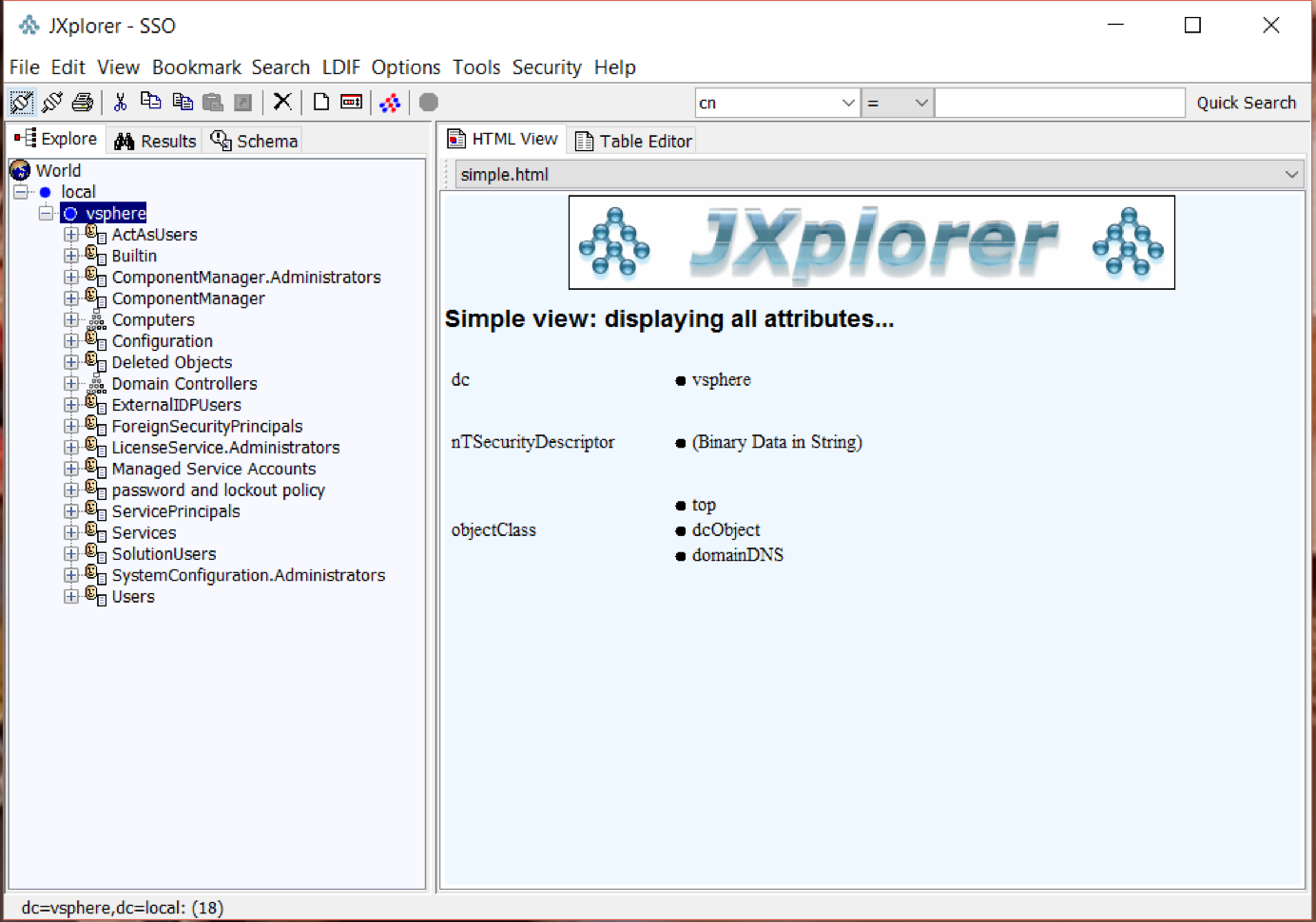

  • You should now see the following screen

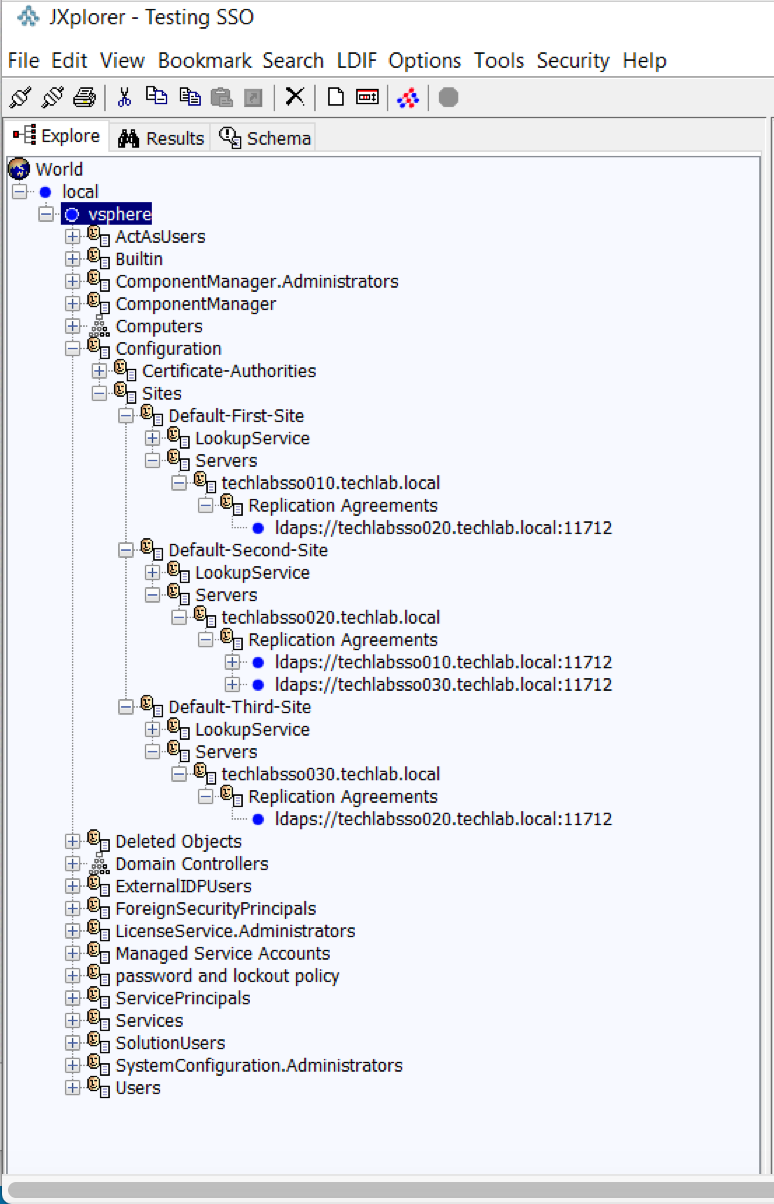

  • Expand vSphere > Configuration > Sites and you should be able to see all the replication agreements.
  • I’ve been playing around with multi-site scenarios which is why you can see Default-First-Site, Default-Second-Site and Default-Third-Site which are my 3 PSCs in a multisite scenario.

Other Observations

Information from Sung Rao (VMware) Thank Q

In 5.5. the only secure LDAP communication between SSO/PSC nodes are via LDAPS.  Thus in automatic replication agreements establishment, LDAPS is used.

In 6.0 and after, we introduced LDAP SASL/SRP binding which go through port 389. LDAP SASL/SRP (or KRB) is the simple and safe to manage between LDAP nodes. This binding mechanism is preferable to LDAPS as the SSL port is difficult to manage/deploy correctly as it depends on PKI. Also, LDAP layer sites below certificate. You need an ID before you can get a cert

Regardless, in 6.0 and after, the server will try SASL/SRP first and fall back to LDAPS if necessary regardless of LDAP/LDAPS in the labeledURI in the replication agreement definition. You also cannot force the replication agreements to use LDAPS in 6.0 and after

Upgrading vSphere 5.1 with embedded SSO to vSphere 6 with external multi-site Platform Services Controllers

arrow-of-double-point-pointing-different-directions_318-50733

vSphere 6 Platform Services Controller Multimode setup

So this is a job I had to do recently which involves quite a few stages but on the whole works very nicely. So I decided to replicate it in my lab using the below 4 servers to show how we can upgrade and migrate from an embedded situation to an external PSC situation. This initial setup has 2 x 5.1 separate vCenter Servers with embedded SSO which will end up being 2 separate 6.0.2 vCenter servers pointing to their own Window 2012 PSCs which will be in Multisite mode.

  • 1 x Windows 2012 server with vCenter 5.1 with embedded SSO
  • 1 x Windows 2012 server with vCenter 5.1 with embedded SSO
  • 1 x Windows 2012 PSC 5.5 U3(New build) (Note we cannot build a v6 PSC at this point due to staged upgrade considerations) (This will be setup as the first PSC)
  • 1 x Windows 2012 PSC 5.5 U3 (New build) (Note we cannot build a v6 PSC at this point due to staged upgrade considerations) (This will be set up as the 2nd PSC in a multi-site configuration.

PSC Information

The Platform Services Controller is available on both the Windows vCenter Server ISO or within the vCenter Server Appliance (VCSA) ISO. We will be using the Windows vCenter Server ISO.

Components that are installed with PSC 6.0 include:

  • VMware Appliance Management Service (only in Appliance-based PSC)
  • VMware License Service
  • VMware Component Manager
  • VMware Identity Management Service
  • VMware HTTP Reverse Proxy
  • VMware Service Control Agent
  • VMware Security Token Service
  • VMware Common Logging Service
  • VMware Syslog Health Service
  • VMware Authentication Framework
  • VMware Certificate Service
  • VMware Directory Service

PSC 6.0 is supported with:

  • VMware vCenter Server
  • VMware vCenter Inventory Services
  • VMware vSphere Web Client
  • VMware Log Browser
  • VMware NSX for vSphere
  • VMware Site Recovery Manager
  • VMware vCloud Air
  • VMware vCloud Director
  • VMware vRealize Automation Center
  • VMware vRealize Orchestrator
  • VMware vSphere Data Protection
  • VMware vShield Manager

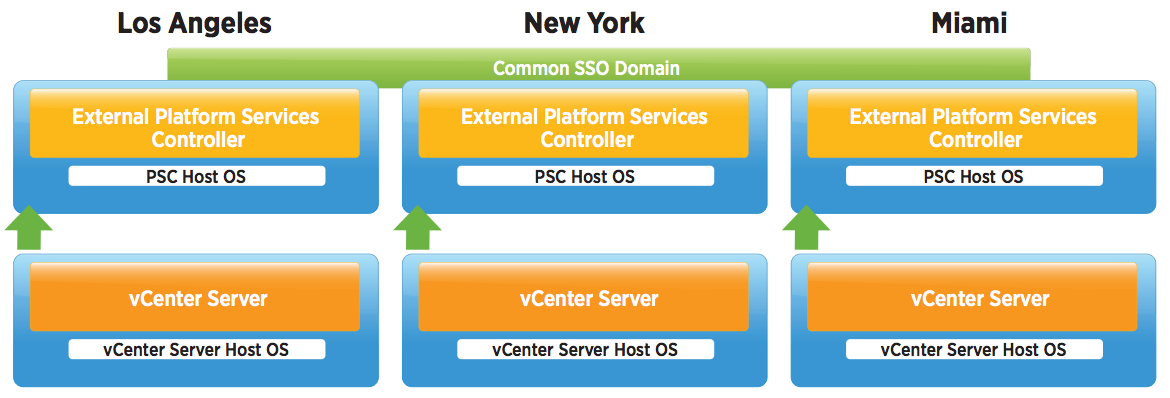

What does Multi-site PSCs give us?

  • Customers are able to seamlessly move the vCenter Servers between PSCs when necessary
  • This topology allows for Enhanced Linked Mode (ELM) which is facilitated by the PSC. Starting with vSphere 6.0, the implementation of Linked Mode has changed. You no longer need to join vCenter Server instances to Linked Mode groups. You can access the replication functionality provided by Linked Mode in vSphere 6 by registering multiple vCenter Server instances to the same Platform Services Controller or joining Platform Services Controller instances in the same vCenter Single Sign-On domain
  • Enhanced Linked Mode provides for a single point of management for all vCenter Servers in the same vSphere domain
  • In vSphere 6 the Windows-based and Virtual Appliance-based vCenter Servers have the same operational maximums and can belong to the same linked mode configuration
  • The configuration replicates all license, global permissions, tags and roles across all sites
  • While it is possible to deploy PSCs over a WAN, the replication between PSCs is very latency sensitive. It is recommended that the latency between PSCs, as with any replicating directory service, to be as low as possible. Additionally, now that Enhanced Linked Mode (ELM) and all features that utilize ELM are facilitated via the PSC, for the best user experience within a vSphere environment, low latency is highly recommended
  • Regarding an environment in which multiple PSCs are in the same vSphere Domain and Enhanced Link Mode is being used, if a PSC in which a vCenter Server is connected to fails, access to this vCenter Server through a different vCenter Server’s vSphere Web Client is not possible. This is due to a user’s SAML token from the vSphere Web Client being unable to be passed to the failed PSC, thus to vCenter Server. Unless the PSC is brought back online or vCenter Server is repointed to a different PSC in the same domain, users cannot access it.

Considerations

  • It is not supported to re-register vCenter Server 5.1 to a PSC 6.0. you need to repoint vCenter 5.1 to a 5.5U3 SSO server first
  • You cannot re-register vCenter Server 6.0 to a PSC 6.0 that does not reside in the existing SSO Domain.
  • You cannot install SSO 5.5 and join a PSC 6.0 (and vice versa)

High Level Overview

  1. Install new Windows Server 2012 R2 SSO 5.5 Server – version 5.5 U3 in the vSphere domain vSphere.local and site configuration Default-First-Site or whatever you want to call your first site for example
  2. Install new Windows Server 2012 R2 SSO 5.5 Server – version 5.5 U3 in the same vSphere domain vSphere.local and multisite configuration Default-Second-Site or whatever you want to call your first site for example
  3. Register/Repoint the first 5.1 embedded SSO vCenter to external 5.5 U3 SSO/PSC
  4. Register/Repoint the second 5.1 embedded SSO vCenter to external 5.5 U3 SSO/PSC
  5. Uninstall 5.1 Single Sign-On from the two 5.1 vCenters. It is important to do this as the underlying SSO schema changed significantly between major versions
  6. Upgrade first external SSO 5.5 to PSC 6.0 U2
  7. Upgrade second external SSO 5.5 to PSC 6.0 U2
  8. Upgrade vCenters to 6.0.2
  9. Upgrade Update Manager and vSphere Client
  10. Check Multisite is working using vcdrepadmin tool in command prompt
  11. Upgrade hosts and VMs

Step 1 and 2 Install 5.5 Single Sign On only on both servers in multisite mode

  • Attach the vSphere 5.5 U3 ISO to the first Windows Server 2012 R2 server
  • Select Single Sign-On and click Install

Screen Shot 2016-08-16 at 14.37.33

  • Click Next

Screen Shot 2016-08-16 at 14.38.38

  • Accept the License Agreement
  • Check the below screens details

Screen Shot 2016-08-16 at 14.40.20

  • Choose Standalone vCenter Single Sign-On server as this is the first SSO server before we attach the second in multisite mode

Screen Shot 2016-08-16 at 14.41.27

  • Leave the Site name as Default-First-Site or you can change it to what you want

Screen Shot 2016-08-16 at 14.43.04

  • HTTPS port is 7444

Screen Shot 2016-08-16 at 14.43.58

  • Check the Directory you are installing in to

Screen Shot 2016-08-16 at 14.44.33

  • Check all the final details

Screen Shot 2016-08-16 at 14.45.17

  • Attach the vSphere 5.5 U3 ISO to the second Windows Server 2012 R2 server

Screen Shot 2016-08-16 at 14.37.33

  • Click Next

Screen Shot 2016-08-16 at 14.38.38

  • Check the details

Screen Shot 2016-08-16 at 14.59.49

  • For this second 5.5 PSC, choose Multisite

Screen Shot 2016-08-16 at 15.15.56

  • Put in the Single Sign-On information putting in the partner host name as the first PSC server we set up

Screen Shot 2016-08-16 at 15.17.09

  • Check the certificate and click Next

Screen Shot 2016-08-16 at 15.18.19

  • Put in a name for the second site (Note the first PSC was Default-First-Site and this second one I have named Default-Second-Site)

Screen Shot 2016-08-16 at 15.19.12

  • HTTPS port is 7444

Screen Shot 2016-08-16 at 14.43.58

  • Check the Directory you are installing in to

Screen Shot 2016-08-16 at 14.44.33

  • Check the Final Details and click Install

Screen Shot 2016-08-16 at 15.20.59

Step 3 and 4 Repointing and reregistering VMware vCenter 5.1 to the new 5.5 SSO/PSC

After certain changes to your VMware vSphere deployment topography, you might need to re-point or re-register vCenter Server components with the vCenter Inventory Service or vCenter Single Sign-On and the vCenter Lookup Service to ensure that the components can continue to communicate.

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2033620

  • On the first vCenter, open a command prompt and change directory to C:\Program Files\VMware\Infrastructure\Inventory Service\scripts
  • Run the is-change-sso.bat command to update the stored configuration information of the Inventory Service. Point to the https address of the new 5.5 SSO server
  • is-change-sso.bat https://techlabsso002.techlab.local:7444/lookupservice/sdk “administrator@vSphere.local” “SSO_password”

Screen Shot 2016-08-17 at 09.39.21

  • Type net stop vimqueryservice
  • Type net start vimqueryservice
  • Next Register vCenter Server with a different Single Sign-On instance

During installation or upgrade, vCenter Server is registered with the Lookup Service for a vCenter Single Sign-On instance. You can change this registration to the Lookup Service for a different Single Sign-On instance. You might register vCenter Server to a different vCenter Single Sign-On instance if the original Single Sign-On instance fails, or if you add a new Single Sign-On node and want to associate vCenter Server with the new node.

Note: When you register vCenter Server to a new Single Sign-On instance, you lose these permissions:

  • All permissions created for users from the Single Sign-On system identity source
  • All permissions granted to users from identity sources that are not present in the new Single Sign-On instance
  • All permissions granted to local operating system users

To register vCenter Server to a different vCenter Single Sign-On instance:

  • Open a command prompt and change directory to C:\Program Files\VMware\Infrastructure\VirtualCenter Server\ssoregtool
  • Note: If you have installed vCenter Server in a location other than the default C:\Program Files\ folder, adjust the path
  • Unzip the sso_svccfg.zip file. Best practice is to unzip these files into a new folder and change directory to the new folder before executing the next step. Unzip to a folder called sso_svccfg
  • Run the below command
  • repoint.cmd configure-vc –lookup-server https://techlabsso002.techlab.local:7444/lookupservice/sdk –user “administrator@vSphere.local” –password “SSO_password@” –openssl-path “C:\Program Files\VMware\Infrastructure\Inventory Service\bin/”

Screen Shot 2016-08-17 at 09.54.07

  • Restart the VMware VirtualCenter Server and the VMware VirtualCenter Management Webservices services
  • Next Ignore the next step in the article which says to re-register vCenter with the Inventory Service unless any of the conditions are relevant
  • Next Register the vSphere Web Client with a different Single Sign-On instance
  • Open a command prompt and change directory to c:\Program Files\VMware\Infrastructure\vSphereWebClient\Scripts
  • Run the following command
  • client-repoint.bat https://techlabsso002.techlab.local:7444/lookupservice/sdk “administrator@vSphere.local” “SSO_password”

Screen Shot 2016-08-17 at 10.07.41

Now interestingly at this point my vSphere Web Client re-registration failed so i had a look at this KB – https://kb.vmware.com/selfservice/search.do?cmd=displayKC&docType=kc&docTypeID=DT_KB_1_1&externalId=2060637 and it said my SSO password is supported with an exclamation mark. However I had to log into the web client on techlabsso002 and change the password and remove the exclamation mark in order for the registration to work!

If you have issues, it will look like this

Screen Shot 2016-08-17 at 10.43.55

  • Next you need to follow exactly the same re-registration steps for the other 5.1 vCenter server and 5.5 SSO server

Step 5 – Uninstall 5.1 Single Sign-On from the two 5.1 vCenters (Important!)

  • Go to Control Panel and Uninstall

Screen Shot 2016-08-17 at 13.31.58

Step 6 and 7 – Upgrade both 5.5 SSO servers to PSC 6 servers

  • Attach the vCenter 6 iso to the first PSC server and select vCenter Server for Windows and Install

Screen Shot 2016-08-17 at 13.41.10

  • Click Next

Screen Shot 2016-08-17 at 14.15.48

  • Accept the License Agreement
  • Put in the Single Sign-On password in and you will see it going through pre-upgrade checks

Screen Shot 2016-08-17 at 14.17.16

  • Check Ports (Important for multi-site communication) (There will be further information at the end of this post about ports required

Screen Shot 2016-08-17 at 14.47.57

  • Check Destination Directories

Screen Shot 2016-08-17 at 14.48.55

  • Choose whether to join the Customer Improvement Program

Screen Shot 2016-08-17 at 14.50.11

  • Check the final details and tick I verify that I have backed up this Single Sign-On machine
  • You can see that this SSO server has a replication partner of the other SSO server techlabsso003 which is in the multi-site setup
  • Click Upgrade

Screen Shot 2016-08-17 at 14.51.08

  • You can check a couple of links such as https://techlabsso002.techlab.local/websso

Screen Shot 2016-08-17 at 15.17.42

  • Check the below link is working also –https://techlabsso002.techlab.local/psc

Screen Shot 2016-08-17 at 15.19.29

  • Next follow the exact same steps to upgrade the second SSO server to a PSC v6 server
  • You will see on the final screen in the details that this is the second site (Default-Second-Site)

Screen Shot 2016-08-17 at 15.27.00

Step 8 – Upgrade both vCenter 5.1 U3 servers to vCenter v6.0 U2

Note: vCenter needs at least 2 vCPUs and 8GB RAM

Note: There is sometimes and error which comes up which says

The user group “NT SERVICE\ALL SERVICES” does not have the “Log on as a service” user right. This precludes the ability to use the virtual accounts feature in Windows permit greater security through increased idolation of services. We recommend that you add this group back to the list of services that have this right. If this right is not added then any installed services that would normally use a virtual account will instead use “Local Service” account

Please see the below KB for further information

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2124709

If this right is not added then any installed services that would normally use a virtual account will instead use the “Local Service” account.

  • Attach the vSphere 6 ISO and select vCenter Server for Windows and click Install

Screen Shot 2016-08-17 at 15.30.48

  • Accept the License Agreement
  • Put in the vCenter Server credentials

Screen Shot 2016-08-17 at 16.56.12

  • It will run the pre-upgrade scripts
  • Put in the Single Sign-On password

Screen Shot 2016-08-17 at 17.20.40

  • Accept the certificate

Screen Shot 2016-08-17 at 17.22.53

  • Check Ports

Screen Shot 2016-08-17 at 17.23.20

  • Select Destination Directories

Screen Shot 2016-08-17 at 17.23.47

  • Check the details on the Ready to Upgrade Page

Screen Shot 2016-08-17 at 17.24.23

  • Note: When I then kicked off the installer in a client site, they had the Task Scheduler Service turned off on the vCenter server which resulted in this error message during the installation.

An error occurred while invoking external command : ‘Command: schtasks /create /ru SYSTEM /rl highest /f /sc minute /mo 5 /tn “VMwareIIAD” /tr “C:\Program Files\VMware\vCenter Server\python\python.exe\” \”C:\Program Files\VMware\vCenter Server\python-modules\iiad\iiad.py\””

Stderr: ERROR: The network address is invalid

Error occurred while creating scheduled task for IIAD

Screen Shot 2016-09-06 at 15.12.31

  • If this happens, you must makse sure the Task Scheduler is started in the services on the vCenter server

Monitoring the Installation logs

Installation Logs

·       C:\ProgramData\VMware\vCenterServer\logs
·       %TEMP% directory, usually C:\Users\username\AppData\Local\Temp

Step 9 – upgrade the vSphere Client

Step 10 -Upgrade Update Manager

Step 11 – Determining multi-site replication agreements and status with the Platform Services Controller using vdcrepadmin

Useful VMware KB Link here

Use these parameters using the vdcrepadmin CLI:

  • showservers – Displays all of the PSCs in a vSphere domain.
  • showpartners – Displays the current partnerships from a single PSC within a vSphere domain.
  • showpartnerstatus – Displays the current replication status of a PSC and any of the replication partners of the PSC.
  • createagreement and removeagreement – Allows for creation and removal of additional replication agreements between PSCs within a vSphere domain.

Steps for vdcrepadmin showservers

This steps below provide information on using the vdcrepadmin command-line interface (CLI) for reviewing the existing vSphere domain, Platform Services Controllers (PSC) that make up your vSphere domain as well as checking the replication agreements configured and replication status within your environment. Although the utility can be used for other operations, at this time, only what is documented must be executed by technical support staff and customers.

  • Log into the PSC and open a Command Prompt as Administrator
  • Navigate to cd c:\Program Files\VMware\vCenter Server\vmdird
  • Type the below command to show all the PSC Controllers in the vSphere domain

vdcrepadmin -f showservers -h PSC_FQDN -u administrator -w Administrator_Password where administrator is the PSC administrator@vsphere.local user account

Example

vdcrepadmin -f showservers -h techlabsso002.techlab.local -u administrator -w Password123!

Screen Shot 2016-08-17 at 21.35.11

  • You should now see the below showing you your 2 PSCs. In my case techlabsso002 and techlabsso003

Steps for vdcrepadmin showpartners

  • Next type the following command to show the psc partners

vdcrepadmin -f showpartners -h psc1.vmware.local -u administrator -w VMw@re123

Example

vdcrepadmin -f showpartners -h techlabpsc002.techlab.local -u administrator -w Password123!

Screen Shot 2016-08-17 at 21.37.08

  • You could run this showpartners command against all PSCs to map out the topology of the current vSphere domain by re-running this command against each of the PSCs in order to determine all of the partnerships.
  • You can see that some environments will be installed in an in-line fashion, with each PSC installed against the previous PSC, rather than a hub-and-spoke fashion where all of the PSCs would terminate to a central PSC

Interesting Info as per above screenprint courtesy of VMware engineer Sung Ruo.

As you can see above the replication agreement is listed as LDAPS. Any automatic agreement such as when we join PSC servers together is created as LDAPS as per this 5.5 to 6.0U2 upgrade however if we create any manual replication agreements, these will be created as LDAP going forwards.

In 5.5. the only secure LDAP communication between SSO/PSC nodes are via LDAPS.  Thus in automatic replication agreements establishment, LDAPS is used.

In 6.0 and after, we introduced LDAP SASL/SRP binding which go through port 389. LDAP SASL/SRP (or KRB) is the simple and safe to manage between LDAP nodes. This binding mechanism is preferable to LDAPS as the SSL port is difficult to manage/deploy correctly as it depends on PKI. Also, LDAP layer sites below certificate. You need an ID before you can get a cert

Regardless, in 6.0 and after, the server will try SASL/SRP first and fall back to LDAPS if necessary regardless of LDAP/LDAPS in the labeledURI in the replication agreement definition. You also cannot force the replication agreements to use LDAPS in 6.0 and after.

Steps for vdcrepadmin showpartnerstatus

  • Next type the following command to show the partner replication status.
  • This CLI is limited to execution only against the local PSC. Using the command to query the replication status from one PSC to a different PSC is not yet supported.

vdcrepadmin -f showpartnerstatus -h localhost -u administrator -w Administrator_password

Example

vdcrepadmin -f showpartnerstatus -h techlabpsc002.techlab.local -u administrator -w Password123!

Screen Shot 2016-08-17 at 21.38.20

  • If you have problems with replication failing, review the /var/log/vmware/vmdird/vmdird-syslog.log or C:\ProgramData\VMware\vCenterServer\logs\vmdird\vmdird-syslog.log file for details. This provides all information related to replication status and the objects that are replicated

What do you see with multisite?

  • When multisite is installed, you can then log in to each vCenter and see all other vCenters which are set up and control them

Multimode

Steps for vdcrepadmin createagreement – Example only with 4 PSCs as I only have 2 PSCs

  • Note: This cannot be used to create replication agreements between disparate (separate) vSphere domains
  • Map out the topology of the current vSphere domain by re-running the showpartners command against each of the PSCs in order to determine all of the partnerships

For example you have 4 PSCs

  • psc1
  • psc2
  • psc3
  • psc4

You can use the showservers parameter to get a list of all of the PSCs in the domain.

Navigate to C:\Program Files\VMware\vCenter Server\vmdird and run the below commands

vdcrepadmin -f showpartners -h psc1.vmware.local -u administrator -w VMw@re123
ldap://psc2. vmware.local

vdcrepadmin -f showpartners -h psc2.vmware.local -u administrator -w VMw@re123
ldap://psc1. vmware.local
ldaps://psc3. vmware.local

vdcrepadmin -f showpartners -h psc3.vmware.local -u administrator -w VMw@re123
ldap://psc4. vmware.local
ldaps://psc2. vmware.local

vdcrepadmin -f showpartners -h psc4.vmware.local -u administrator -w VMw@re123
ldap://psc3. vmware.local

  • With the topology defined, we can now generate new replication agreements. Using the PSCs 1-4 in this section as a model, we need to generate additional replication agreements between:
  • PSC1.* and PSC3.*
  • PSC1.* and PSC4.*
  • PSC2.* and PSC4.*
  • Use the following command to create a new replication agreement between PSCs to generate a mesh topology:

vdcrepadmin -f createagreement -2 -h Source_PSC_FQDN -H New_PSC_FQDN_to_Replicate -u administrator -w Administrator_Password

For example:

vdcrepadmin -f createagreement -2 -h psc1.vmware.local -H psc3.vmware.local -u Administrator -w VMw@re123

vdcrepadmin -f createagreement -2 -h psc1.vmware.local -H psc4.vmware.local -u Administrator -w VMw@re123

vdcrepadmin -f createagreement -2 -h psc2.vmware.local -H psc4.vmware.local -u Administrator -w VMw@re123

  • Repeat this operation for additional PSCs until you have created an entire mesh topology.
  • After completion, repeat Step 5 to confirm that you have generated a mesh topology.
  • Note: Due to replication time, it may take a few seconds to minutes for a complete mesh topology to be configured.

Steps for vdcrepadmin removeagreement – Example only with 4 PSCs as I only have 2 PSCs

  • Map out the topology of the current vSphere domain by re-running the showpartners command against each of the PSCs in order to determine all of the partnerships

For example you have 4 PSCs

  • psc1
  • psc2
  • psc3
  • psc4

You can use the showservers parameter to get a list of all of the PSCs in the domain.

vdcrepadmin -f showpartners -h psc1.vmware.local -u administrator -w VMw@re123
ldap://psc2. vmware.local
ldap://psc3. vmware.local
ldap://psc4. vmware.local

vdcrepadmin -f showpartners -h psc2.vmware.local -u administrator -w VMw@re123
ldap://psc1. vmware.local
ldap://psc3. vmware.local
ldap://psc4. vmware.local

ldap://psc4. vmware.local

vdcrepadmin -f showpartners -h psc3.vmware.local -u administrator -w VMw@re123
ldap://psc4. vmware.local
ldap://psc2. vmware.local
ldap://psc1. vmware.local

vdcrepadmin -f showpartners -h psc4.vmware.local -u administrator -w VMw@re123
ldap://psc3. vmware.local
ldap://psc1. vmware.local
ldap://psc2. vmware.local

  • Use the following command to remove a replication agreement

vdcrepadmin -f removeagreement -2 -h Source_PSC_FQDN -H PSC_FQDN_to_Remove_from_Replication -u administrator -w Administrator_Password

For example:

vdcrepadmin -f removeagreement -2 -h psc1.vmware.local -H psc3.vmware.local -u administrator -w Administrator_Password

Monitoring the PSC Replication Logs

C:\ProgramData\VMware\vCenter Server\Logs\sso\vmware-sts-idmd.log

This is a good log to use as a “one-stop-shop” for SSO authentication issues. Authentication requests/failures as well as problems with an identity source will post here.

C:\ProgramData\VMware\vCenter Server\Logs\vmafdd\vdcpromo.log

Contains installation errors during configuration of vmdir. Especially useful for errors when adding another PSC to the same SSO domain.

C:\ProgramData\VMware\vCenter Server\Logs\vmafdd\vmafdd.log

C:\ProgramData\VMware\vCenter Server\Logs\vmdird\vmdird-syslog.log

Has information concerning the SSO LDAP instance named vmdir. Problems with ldap operations and replication within SSO can be found here.

C:\ProgramData\VMware\vCenter Server\Logs\vmdird\vdcrepadmin.log

C:\ProgramData\VMware\vCenter Server\Logs\vmdird\vmafdvmdirclient.log

C:\Program Data\VMware\CIS\logs\vmdird\vmdir.log

vCenter and PSC Ports

Ports can also be seen here in the vSphere Documentation Center

The table below shows all the ports which vCenter uses but multisite communication only needs a subset of these ports

Screen Shot 2016-08-17 at 15.08.10

What ports need to be open between sites for PSC Multisite Mode?

Some situations exist where communication within the same SSO domain can be blocked by external firewalls. The ports which should be open are

PSC to PSC should be 389, 636, 2012, 2014, 2020 and 7444 (Plus 11711 and 11712 if using 5.5)

VC to VC should be 443

PSC to VC should be 443, 389, 636, 11711,11712 and 2012 (11711 and 11712 legacy)

vCenter to vCenter

techlabvcs004 vCenter to techlabvcs005 vCenter – 443

techlabvcs005 vCenter to techlabvcs004 vCenter – 443

PSC to PSC

techlabsso002 PSC to techlabsso003 PSC – 389, 636, 11711, 11712, and 2012 (11711 and 11712 legacy)

techlabsso003 PSC to techlabsso002 PSC – 389, 636, 11711, 11712, and 2012 (11711 and 11712 legacy)

vCenter to PSC

techlabvcs004 vCenter to techlabsso002 PSC – 443, 389, 636, 2012, 2014, 2020, and 7444 (plus 11711 and 11712 if using 5.5)

techlabvcs004 vCenter to techlabsso003 PSC – 443, 389, 636, 2012, 2014, 2020, and 7444 (plus 11711 and 11712 if using 5.5)

techlabvcs005 vCenter to techlabsso002 PSC – 443, 389, 636, 2012, 2014, 2020, and 7444 (plus 11711 and 11712 if using 5.5)

techlabvcs005 vCenter to techlabsso003 PSC – 443, 389, 636, 2012, 2014, 2020, and 7444 (plus 11711 and 11712 if using 5.5)

Checking what sites and domains the PSCs are running on

You can use the following commands from the PSC to discover the SSO topology

SSO Site

  • VCSA: /usr/lib/vmware-vmafd/bin/vmafd-cli get-site-name –-server-name localhost
  • Windows: C:\Program Files\VMware\vCenter Server\vmafdd\vmafd-cli get-site-name –-server-name localhost

SSO Domain

  • VCSA: /usr/lib/vmware-vmafd/bin/vmafd-cli get-domain-name –-server-name localhost
  • Windows: C:\Program Files\VMware\vCenter Server\vmafdd\vmafd-cli get-domain-name –-server-name localhost

How can I see what PSC I am connected to?

Under the vCenter Server’s Advanced Setting, there is a property called “config.vpxd.sso.admin.uri” which specifies the PSC it is currently linked to

Home > vCenter Inventory Lists > Your vCenter Server > Manage > Advanced Settings > Look for “config.vpxd.sso.admin.uri

The second option is to use the vmafd-cli utility which is available on the vCenter Server itself. You will need to run the following command depending on your vCenter Server platform (VCSA or Windows)

  • /usr/lib/vmware-vmafd/bin/vmafd-cli get-ls-location –server-name localhost
  • C:\Program Files\VMware\vCenter Server\vmafdd\vmafd-cli get-ls-location –server-name localhost

SQL Database Password issues during the upgrade

Interestingly we had an error at one site due to special characters

https://kb.vmware.com/selfservice/microsites/search.do?language=en_US&cmd=displayKC&externalId=2125492

Installing vCenter Single Sign-On 5.5 fails if the password for administrator@vsphere.local contains certain special characters

https://kb.vmware.com/selfservice/search.do?cmd=displayKC&docType=kc&docTypeID=DT_KB_1_1&externalId=2060746



Optimization WordPress Plugins & Solutions by W3 EDGE
